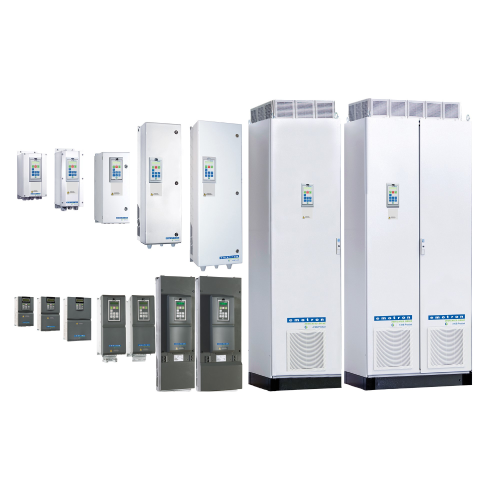

VFX – Ideal Drive for Dynamic Applications
Applications: Cranes, Crushers, Mills and Mixers
Ratings:
IP54: 0.75-3,000 kW,230-690 V, 3-phase 2.5-3,000 A IP20/21: 0,75-160kW, 230-480 V, 3-phase 2.5-293 A
Main Features:
- Direct Torque Control – for superior motor control
- Easy access to connection terminals & removable control panel.
- Built-in brake chopper for sizes A3, B3 and C3, 0.75-15 kW.
- Standard software functions like PID process regulator, Multiple pump control and Load monitor.
Options:
- Isolated PTC resp. PTC/PT100 temp sensor boards, Safe Stop, and Encoder board available
- Industrial Ethernet communication boards for ProfiNet, ModBus/TCP, EtherCat, EtherNet IP
Approvals: CE, UL/cUL
